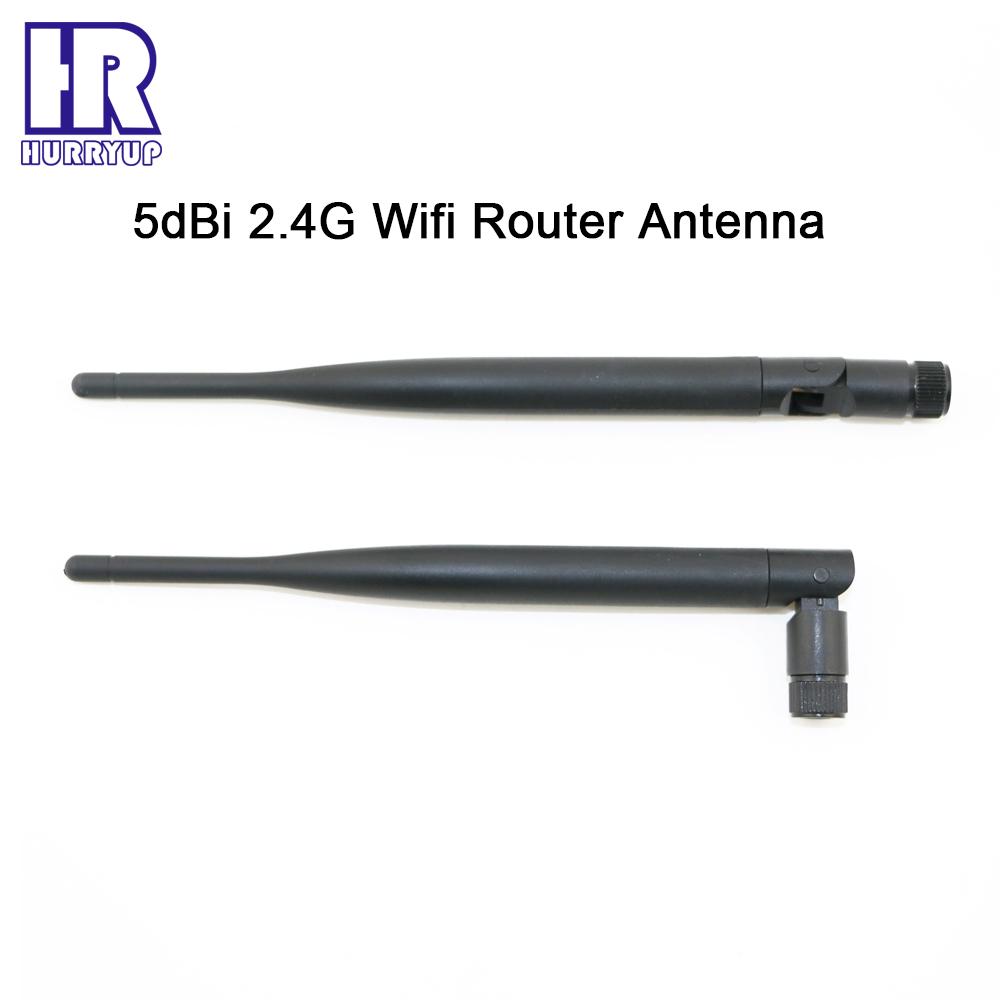

5dBi gain 2.4G wifi antenna omni router antenna

  • 5dBi gain 2.4G wifi antenna omni router antenna
  • 5dBi gain 2.4G wifi antenna omni router antenna
  • 5dBi gain 2.4G wifi antenna omni router antenna
  • 5dBi gain 2.4G wifi antenna omni router antenna
  • 5dBi gain 2.4G wifi antenna omni router antenna
Model No.︰WIFI antenna
Brand Name︰SZHR
Country of Origin︰China
Unit Price︰US $ 2.5 / pc
Minimum Order︰10 pc
Share on:

 Total 22 Related Items
Prev1112131415Next

Product Description

Products Name: 5dBi gain 2.4G wifi antenna omni router antenna

Feature:

     ◆ Delivers high performance for all 2G/3G/3.5

     ◆ Networks worldwide.

     ◆ 800MHz to 2200MHz.

     ◆ Magnetic mount

     ◆ Custom cables and connectors available

     ◆ RoHS



Specification:

Communication System

Penta-band Cellular

AMPS

GSM

DCS

PCS

UMTS

Frequency(MHz)

824~896

880~960

1710~1880

1850~1990

1710~2170

Average Efficiency

(free space)

35%

45%

21%

22%

22%

Average Efficiency

(mount on metal)

44%

40%

24%

26%

26%

Gain(dBi)

(free space)

2.6

5.0

-2.2

-2.3

-2.1

Gain(dBi)

(mount on metal)

0.1

-0.3

-1.0

-1.0

-0.7

Impedance

50Ohm

Radiation Pattern

Omni-directional

Polarization

Linear

VSWR

<2.0:1

Operation Temp

-40℃~ +85℃

Storage Temp

-40℃~ +105℃

Antenna Material

300 series stainless steel with black Duracoat finish

Antenna Height

12cm

Weight

60g without cable connector

Cable Available

RG-174 / RG-178

Connector Available

SMA / SMB / SMC / TNC / FME / MCX / MMCX / N-type / Fakra







Payment Terms︰TT; WU ;PAYPAL
