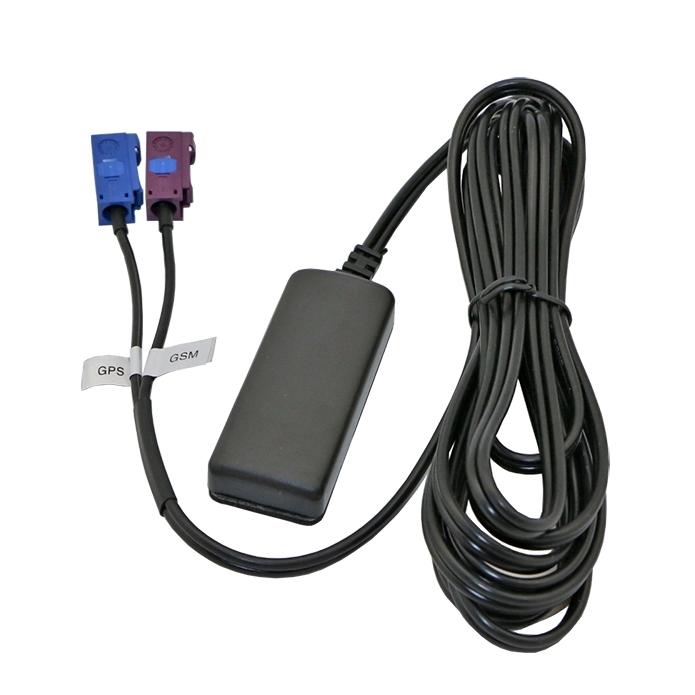

GSM GPS antenna/High gain external antenna
1.high gain gsm antenna with gps
2.Standard Cable Type RG174
3.Standard Connector
gsm+ gps antenna with factory price
hot sale
popular
Product Description
Model: SPA1 GSM+GPS antenna
(i) Dielectric Antenna
Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impendence 50 ohm
Peak Gain >3dBic Based on 7×7cm ground plane
Gain Coverage >-4dBic at –90°<0<+90°(over 75% Volume)
Polarization RHCP
(ii)GSM Antenna
Center Frequency 824MHz~894MHz(AMPS),880 MHz~960MHz(GSM)
1710MHz~1990MHz
V.S.W.R 2.0:1
Impendence 50 ohm
Typical Gain 2dBi+/-1dB@850MHZ; 2dBi+/-1dB@900MHZ;
1dBi+/-1dB@1800MHZ; 1dBi+/-1dB@1900MHZ
(iii)LNA/Filter
LNA Gain(Without cable) 28dB Typical
Noise Figure 1.5dB
Filter Out Band Attenuation (f0=1575.42 MHZ)
7dB Min f0+/-20MHZ ;
20dB Min f0+/-50MHZ;
30dB Min f0+/-100MHZ
V.S.W.R <2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 11mA Max
(iv)Mechanical
Weight <240gram
Size 70mm(L)×12mm(H)*28mm(W)
Cable GPS-----RG174 3meter(±2cm
GSM-----RG174 3meter(±2cm
Connector GPS-----SMA
GSM----SMA
Mounting Adhesive /Magnetic/Screw Mounting
Housing Black
(v) Environmental
Working Temp. -40°C~+85°C
Storage Temp. -45°C~+100°C
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity Humidity95%~100%RH
Weatherproof 100%Waterproof
